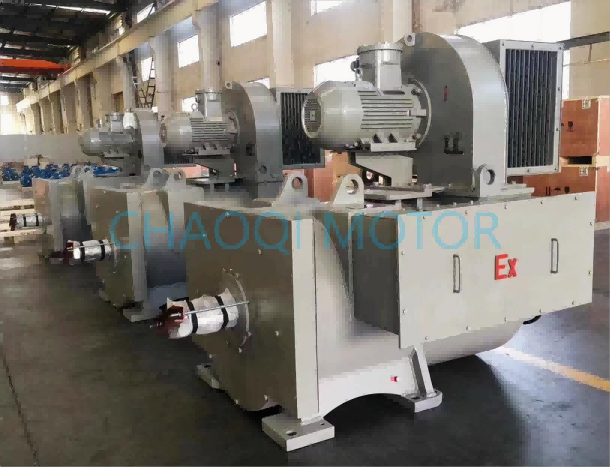

YAP423 Series Explosion-Proof Variable Frequency Speed Control Three-Phase Induction Motor for Oil Drilling Rigs

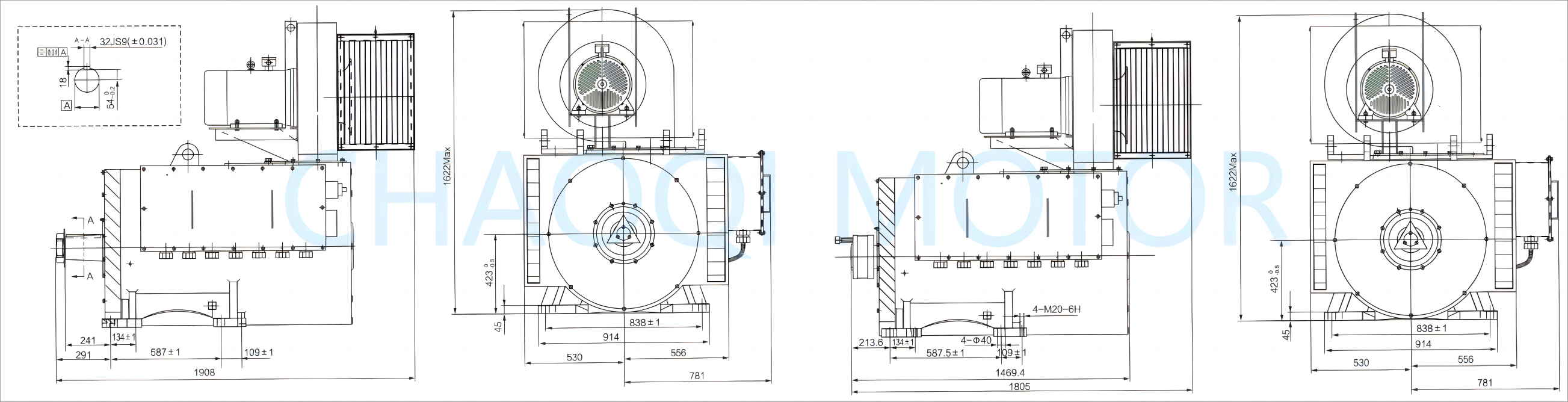

This standard outlines specifications for explosion-proof variable frequency three-phase asynchronous motors for YAP423 petroleum drilling rigs. It covers type, dimensions, technical requirements, and more, adhering to GB3836.1 and GB3836.3 for explosion-proof ratings (Exell T3, Zone I). The motors meet HSE, have an IP44/IP54 protection level, and use cooling methods IC06 or IC17. Suitable for altitudes up to 1000m and temperatures from -20°C to +40°C, with a relative humidity limit of ≤95% at +45°C.

Product Detail

Specification of YAP423 Series Explosion-Proof Variable Frequency Speed Control Three-Phase Induction Motor for Oil Drilling Rigs

Model Type	Rated Power(KW)	Rate Voltage(V)	Rated Frequency(Hz)	Rated Speed(r/min)	Rated Current(A)	Effeciency(η%)	Power Factor cosφ	Ist/In	Tst/Tn	Tmax/Tn	Connection
YAP423-6	600	600	33.5	576	710	93	0.87	7	1.8	3.2	△
YAP423-6	1000	660	50	990	1045	94	0.89	7	1.5	2.8	△
YAP423-6	1200	600	50	990	1395	93	0.89	7	1.5	2	△
YAP423-6	1200	660	50	990	1254	94	0.89	7	1.5	2	△
YAP423L6-6H1	1200	600	50.5	1000	1395	93	0.89	7	1.5	2.8	△
YAP423-8	1000	600	50	740	1258	93.7	0.816	6.5	1.23	2.6	△
