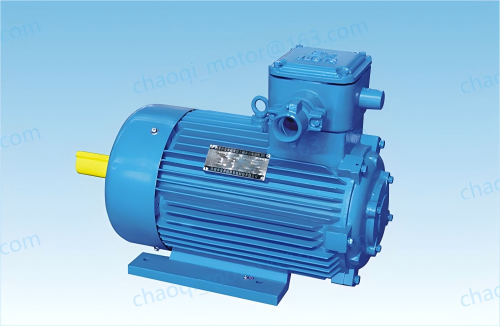

YBZ Series Flameproof Three-Phase Induction Motor for Crane Applications

Spefication of YBZ Series Flameproof Three-Phase Induction Motor for Crane Applications

Frame	Syn Speed /min	Rated Power (KW)	Rated Current (A)	Rated Speed (r/min)	Tmax/Tn	Ts/Tn	Ist/In	Eff%	Power Factor cosφ	Moment of inertia kg·m 2	Weight (kg)
YBZ-112M	1000	1.5	4.25	920	2.7	2.44	4.47	69.5	0.765	0.02	58
YBZ-132M1	1000	2.2	5.9	935	2.9	3.1	5.16	74	0.745	0.053	80
YBZ-132M2	1000	3.7	8.8	912	2.8	3	5.54	79	0.79	0.058	91.5
YBZ-160M1	1000	5.5	12.5	933	2.7	2.5	4.9	80.6	0.83	0.105	118.5
YBZ-160M2	1000	7.5	15.9	948	2.9	2.4	5.52	83	0.84	0.133	131.5
YBZ-160L	1000	11	24.6	953	2.9	2.7	6.17	84	0.85	0.178	152
YBZ-160L	750	7.5	18	705	2.7	2.5	5.1	82	0.74	0.178	152
YBZ-180L	750	11	25.8	694	2.5	2.6	4.9	80.9	0.811	0.33	205
YBZ-200L	750	15	33.1	710	2.8	2.7	6.1	85	0.8	0.58	276
YBZ-225M	750	22	45.8	712	2.9	2.9	6.2	84	0.83	0.75	347
YBZ-250M1	750	30	63.3	694	2.54	2.7	5.47	85	0.84	1.33	462

Duty S3 15%_25%_60_100% Spefication of YBZ Series Flameproof Three-Phase Induction Motor for Crane Applications

Frame	Syn Speed (r/min)	15% Rated Power (KW)	15% Rated Current (A)	15% Rated Speed (r/min)	25% Rated Power (KW)	25% Rated Current (A)	25% Rated Speed (r/min)	60% Rated Power (KW)	60% Rated Current (A)	60% Rated Speed (r/min)	100% Rated Power (KW)	100% Rated Current (A)	100% Rated Speed (r/min)
YBZ-112M	1000	2.2	6.5	810	1.8	4.9	892	1.1	2.7	946	0.8	3.5	980
YBZ-132M1	1000	3	7.5	804	2.5	6.5	920	1.8	5.3	950	1.5	4.9	960
YBZ-132M2	1000	5	11.6	890	4	9.2	915	3	7.5	940	2.8	7.2	945
YBZ-160M1	1000	7.5	16.8	903	6.3	14.1	922	5	11.5	940	4	10	953
YBZ-160M2	1000	11	25.4	926	8.5	18	943	6.3	14.2	956	5.5	13	961
YBZ-160L	1000	15	32	920	13	28.7	936	9	20.6	964	7.5	18.8	972
YBZ-160L	750	11	27.4	675	9	21.1	694	6	15.6	717	5	14.2	724
YBZ-180L	750	15	35.3	654	13	30	675	9	21.5	710	7.5	19.2	718
YBZ-200L	750	22	47.5	686	18.5	40	697	13	28.1	714	11	26	720
YBZ-225M	750	33	69	687	26	53.5	701	18.5	40	718	17	37.5	720
YBZ-250M1	750	42	89	663	35	74	681	26	56	702	22	45	717

Duty S2 Spefication of YBZ Series Flameproof Three-Phase Induction Motor for Crane Applications

Frame	Syn Speed r/min	30 Minutes Rated Power (KW)	30 Minutes Rated Current (A)	30 Minutes Rated Speed (r/min)	60 Minutes Rated Power (KW)	60 Minutes Rated Current (A)	60 Minutes Rated Speed (r/min)	Tmax/Tn	Ts/Tn	Ist/In	Eff%	Power Factor cosφ	Moment of inertia kg·m	Weight (kg)
YBZ-112M	1000	1.8	4.9	892	1.5	4.25	920	2.7	2.44	4.47	69.5	0.765	0.02	58
YBZ-132M1	1000	2.5	6.5	920	2.2	5.9	935	2.9	3.1	5.16	74	0.745	0.053	80
YBZ-132M2	1000	4	9.2	915	3.7	8.8	912	2.8	3	5.54	79	0.79	0.058	91.5
YBZ-160M1	1000	6.3	14.1	922	5.5	12.5	933	2.7	2.5	4.9	80.6	0.83	0.105	118.5
YBZ-160M2	1000	8.5	18	943	7.5	15.9	948	2.9	2.4	5.52	83	0.84	0.133	131.5
YBZ-160L	1000	15	32	920	11	24.6	953	2.9	2.7	6.17	84	0.85	0.178	152
YBZ-160L	750	9	21.1	694	7.5	18	705	2.7	2.5	5.1	82	0.74	0.178	152
YBZ-180L	750	13	30	675	11	25.8	694	2.5	2.6	4.9	80.9	0.811	0.33	205
YBZ-200L	750	18.5	40	697	15	33.1	710	2.8	2.7	6.1	85	0.8	0.58	276
YBZ-225M	750	26	53.5	701	22	45.8	712	2.9	2.9	6.2	84	0.83	0.75	347
YBZ-250M1	750	35	74	681	30	63.3	694	2.54	2.7	5.47	85	0.84	1.33	462

IM1001_IM1003 Mounting of YBZ Series Flameproof Three-Phase Induction Motor for Crane Applications

Frame	A	A/2	B	C2	CA	D2	D1	E	E1	F	G	H	K	Bolt Diameter (mm)	AB	AC	BB	HA	HD	L	AD	LC
112M	190	95	140	70	135	32	-	80	-	10	27	112	12	M10	250	245	235	18	430	440	210	550
132M	216	108	178	89	191	38	-	80	-	10	33	132	12	M10	275	285	260	20	440	555	210	618
160M	254	127	210	108	202	48	-	110	-	14	42.5	160	15	M12	330	325	290	20	490	622	210	740
160L	254	127	254		226	48	-	110	-	14	42.5	160	15	M12	330	325	335	20	490	690	210	810
180L	279	139.5	279	121	226	55	M36×3	110	82	14	19.9	180	15	M12	360	360	380	25	510	735	210	860
200L	318	159	305	133	210	60	M42x3	140	105	16	21.4	200	19	M16	405	470	400	25	590	830	285	970
225M	356	178	311	149	258	65	M42x3	140	105	16	23.9	225	19	M16	455	480	410	28	635	900	285	1040
250M	406	203	406	168	295	70	M48×3	140	105	18	25.4	250	24	M20	515	480	580	30	675	980	285	1120

IM3001_IM3003 Mounting of YBZ Series Flameproof Three-Phase Induction Motor for Crane Applications

Frame	Flange No.	D	D1	E	E1	F	G	M	N	P	S	Bolt Dia (mm)	T	Hole Nos	AD	L	LA	LB
112M	FF215	32	-	80	-	10	27	215	180	250	15	M12	4	4	230	440	14	360
132M	FF265	38	-	80	-	10	33	265	230	300	15	M12	4	4	250	585	14	505
160M	FF300	48	-	110	-	14	42.5	300	250	350	19	M16	5	4	280	725	18	615
160L	FF300	48	-	110	-	14	42.5	300	250	350	19	M16	5	4	280	760	18	650
180L	FF300	55	M36×3	110	82	14	19.9	300	250	350	19	M16	5	4	300	785	18	675
200L	FF400	60	M42×3	140	105	16	21.4	400	350	450	19	M16	5	8	340	925	20	785
225M	FF400	65	M42×3	140	105	16	23.9	400	350	450	19	M16	5	8	340	980	20	840
250M	FF500	70	M48×3	140	105	18	25.4	500	450	550	19	M16	5	8	380	1050	22	910

IM3011_IM3013 Mounting of YBZ Series Flameproof Three-Phase Induction Motor for Crane Applications

Frame	Flange No.	D	D1	E	E1	F	G	M	N	P	S	Bolt Dia	T	Hole No.	AD	L	LA	LB
112M	FF215	32	-	80	-	10	27	215	180	250	15	M12	4	4	220	440	14	360
132M	FF265	38	-	80	-	10	33	265	230	300	15	M12	4	4	230	585	14	505
160M	FF300	48	-	110	-	14	42.5	300	250	350	19	M16	5	4	260	725	18	615
160L	FF300	48	-	110	-	14		300	250	350	19	M16	5	4	260	760	18	650
180L	FF300	55	M36×3	110	82	14	19.9	300	250	350	19	M16	5	4	280	785	18	675
200L	FF400	60	M42×3	140	105	16	21.4	400	350	450	19	M16	5	8	320	925	20	785
225M	FF400	65	M42×3	140	105	16	23.9	400	350	450	19	M16	5	8	320	980	20	840
250M	FF500	70	M48×3	140	105	18	25.4	500	450	550	19	M16	5	8	345	1050	22	910

Wuxi Chaoqi Electric Motor Co.,Ltd
