Spefication of YZP Series Variable-Frequency Adjustable-Speed Three-phase Induction Motor for Crane and Metallurgical Applications
| Type |
Rated Power (kW) |
Rated Voltage (V) |
Rated Current (A) |
Rated Torque (N.m) |
Rated Speed (r/min) |
Lock Torque /Rated Torque |
Max Torque /Rated Torque |
Moment of Inertia (kg.m²) |
Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|
| YZP-112M-4 | 4.0 | 380 | 9.5 | 26 | 1415 | 1.5-2.0 | 3.0 | 0.0175 | 55 |
| YZP-132M1-4 | 5.5 | 380 | 12.2 | 36 | 1450 | 1.5-2.0 | 3.1 | 0.048 | 78 |
| YZP-132M₂-4 | 7.5 | 380 | 16.9 | 48 | 1450 | 1.5-2.0 | 3.2 | 0.056 | 92 |
| YZP-160M-4 | 11 | 380 | 23 | 71 | 1465 | 1.5-2.0 | 3.4 | 0.11 | 115 |
| YZP-160L-4 | 15 | 380 | 30 | 96 | 1465 | 1.5-2.0 | 3.5 | 0.125 | 130 |
| YZP-180M-4 | 22 | 380 | 43 | 141 | 1460 | 1.5-2.0 | 3.3 | 0.35 | 205 |
| YZP-200L1-4 | 30 | 380 | 57 | 192 | 1470 | 1.5-2.0 | 3.5 | 0.263 | 280 |
| YZP-200L2-4 | 37 | 380 | 70 | 236 | 1470 | 1.5-2.0 | 3.2 | 0.273 | 300 |
| YZP-225M-4 | 45 | 380 | 84 | 288 | 1475 | 1.5-2.0 | 3.3 | 0.469 | 325 |
| YZP-250M-4 | 55 | 380 | 102 | 352 | 1475 | 1.5-2.0 | 3.0 | 0.66 | 427 |
| YZP-280S1-4 | 75 | 380 | 136 | 478 | 1475 | 1.5-2.0 | 3.0 | 1.12 | 565 |
| YZP-280S2-4 | 90 | 380 | 165 | 575 | 1475 | 1.5-2.0 | 3.0 | 1.15 | 572 |
| YZP-280M-4 | 110 | 380 | 202 | 703 | 1480 | 1.5-2.0 | 3.3 | 1.46 | 677 |
| YZP-315S-4 | 132 | 380 | 243 | 845 | 1485 | 1.5-2.0 | 3.2 | 3.11 | 867 |
| YZP-315M1-4 | 160 | 380 | 288 | 1020 | 1485 | 1.5-2.0 | 3.3 | 3.62 | 1023 |
| YZP-315M2-4 | 200 | 380 | 360 | 1282 | 1485 | 1.5-2.0 | 3.1 | 4.13 | 1092 |
| YZP-315M3-4 | 220 | 380 | 396 | 1409 | 1485 | 1.5-2.0 | 3.0 | 4.94 | 1161 |
| YZP-355M-4 | 250 | 380 | 440 | 1593 | 1480 | 1.5-2.0 | 3.1 | 5.75 | 1720 |
| YZP-355L-4 | 315 | 380 | 550 | 2008 | 1480 | 1.5-2.0 | 3.1 | 6.79 | 1870 |
| YZP-400L1-4 | 355 | 380 | 620 | 2273 | 1491 | 1.5-2.0 | 3.6 | 11.93 | 2500 |
| YZP-400L2-4 | 400 | 380 | 710 | 2562 | 1491 | 1.5-2.0 | 3.6 | 13.1 | 2700 |
| YZP-400L3-4 | 450 | 380 | 800 | 2882 | 1491 | 1.5-2.0 | 3.6 | 13.1 | 2700 |
| YZP-450L1-4 | 500 | 380 | 880 | 3200 | 1492 | 1.5-2.0 | 3.6 | 20 | 3300 |
| YZP-450L2-4 | 560 | 380 | 980 | 3584 | 1492 | 1.5-2.0 | 3.6 | 22 | 3600 |
| YZP-450L3-4 | 630 | 380 | 1126 | 4032 | 1492 | 1.5-2.0 | 3.6 | 25 | 3700 |
| YZP-112M-6 | 2.2 | 380 | 6.0 | 21.5 | 930 | 1.5-2.0 | 3.0 | 0.020 | 55 |
| YZP-132M1-6 | 3 | 380 | 7.5 | 29 | 960 | 1.5-2.0 | 3.1 | 0.0525 | 80 |
| YZP-132M2-6 | 4 | 380 | 9.8 | 38.5 | 960 | 1.5-2.0 | 3.1 | 0.0562 | 92 |
| YZP-132M3-6 | 5.5 | 380 | 12.7 | 53 | 960 | 1.5-2.0 | 3.1 | 0.0575 | 97 |
| YZP-160M-6 | 7.5 | 380 | 18 | 72 | 970 | 1.5-2.0 | 3.0 | 0.1325 | 132 |
| YZP-160L-6 | 11 | 380 | 26 | 106 | 970 | 1.5-2.0 | 3.1 | 0.1775 | 152 |
| YZP-180L-6 | 15 | 380 | 34 | 145 | 975 | 1.5-2.0 | 3.2 | 0.31 | 220 |
| YZP-200L1-6 | 22 | 380 | 45 | 211 | 980 | 1.5-2.0 | 3.3 | 0.315 | 250 |
| YZP-200L2-6 | 30 | 380 | 60 | 290 | 980 | 1.5-2.0 | 3.0 | 0.361 | 290 |
| YZP-225M-6 | 37 | 380 | 73 | 355 | 982 | 1.5-2.0 | 3.0 | 0.547 | 318 |
| YZP-250M-6 | 45 | 380 | 85 | 432 | 982 | 1.5-2.0 | 2.9 | 0.834 | 430 |
| YZP-280S-6 | 55 | 380 | 104 | 529 | 985 | 1.5-2.0 | 3.0 | 1.39 | 550 |
| YZP-280M-6 | 75 | 380 | 143 | 720 | 985 | 1.5-2.0 | 3.1 | 1.65 | 620 |
| YZP-315S-6 | 90 | 380 | 170 | 862 | 985 | 1.5-2.0 | 3.1 | 4.11 | 870 |
| YZP-315M1-6 | 110 | 380 | 206 | 1055 | 985 | 1.5-2.0 | 3.2 | 4.78 | 1025 |
| YZP-315M2-6 | 132 | 380 | 246 | 1271 | 985 | 1.5-2.0 | 3.0 | 5.45 | 1098 |
| YZP-315M3-6 | 160 | 380 | 297 | 1540 | 985 | 1.5-2.0 | 3.0 | 6.12 | 1165 |
| YZP-355M1-6 | 200 | 380 | 369 | 1913 | 980 | 1.5-2.0 | 3.5 | 8.02 | 1690 |
| YZP-355M2-6 | 220 | 380 | 403 | 2103 | 980 | 1.5-2.0 | 3.5 | 9.63 | 1730 |
| YZP-355L-6 | 250 | 380 | 450 | 2390 | 980 | 1.5-2.0 | 3.5 | 10.54 | 1820 |
| YZP-400L1-6 | 315 | 380 | 590 | 3026 | 994 | 1.5-2.0 | 3.6 | 13.9 | 2800 |
| YZP-400L2-6 | 355 | 380 | 640 | 3410 | 994 | 1.5-2.0 | 3.6 | 16.2 | 3000 |
| YZP-450L1-6 | 400 | 380 | 710 | 3839 | 995 | 1.5-2.0 | 3.6 | 37.8 | 3400 |
| YZP-450L2-6 | 450 | 380 | 810 | 4319 | 995 | 1.5-2.0 | 3.6 | 44 | 3800 |
| YZP-450L3-6 | 500 | 380 | 920 | 4798 | 995 | 1.5-2.0 | 3.6 | 45 | 3700 |
| YZP-160L-8 | 7.5 | 380 | 19 | 97 | 730 | 1.5-2.0 | 2.8 | 0.1775 | 152 |
| YZP-180L-8 | 11 | 380 | 26 | 141 | 735 | 1.5-2.0 | 3.1 | 0.325 | 220 |
| YZP-200L-8 | 15 | 380 | 35 | 192 | 735 | 1.5-2.0 | 3.1 | 0.339 | 260 |
| YZP-225M-8 | 22 | 380 | 48 | 282 | 735 | 1.5-2.0 | 2.9 | 0.491 | 270 |
| YZP-225M1-8 | 30 | 380 | 68 | 386 | 735 | 1.5-2.0 | 2.9 | 0.547 | 292 |
| YZP-250M-8 | 37 | 380 | 76 | 473 | 730 | 1.5-2.0 | 2.8 | 0.834 | 405 |
| YZP-280S-8 | 45 | 380 | 93 | 575 | 735 | 1.5-2.0 | 3.0 | 1.39 | 520 |
| YZP-280M-8 | 55 | 380 | 121 | 703 | 735 | 1.5-2.0 | 2.9 | 1.65 | 592 |
| YZP-315S-8 | 75 | 380 | 154 | 960 | 735 | 1.5-2.0 | 3.1 | 4.79 | 1000 |
| YZP-315M1-8 | 90 | 380 | 182 | 1152 | 735 | 1.5-2.0 | 3.1 | 5.58 | 1100 |
| YZP-315M2-8 | 110 | 380 | 220 | 1416 | 730 | 1.5-2.0 | 3.0 | 6.37 | 1100 |
| YZP-315M2-8 | 132 | 380 | 269 | 1692 | 735 | 1.5-2.0 | 2.9 | 7.23 | 1230 |
| YZP-355M1-8 | 160 | 380 | 320 | 2038 | 745 | 1.5-2.0 | 2.9 | 9.4 | 1690 |
| YZP-355M2-8 | 200 | 380 | 393 | 2548 | 745 | 1.5-2.0 | 2.9 | 11.38 | 1790 |
| YZP-355L1-8 | 220 | 380 | 425 | 2803 | 745 | 1.5-2.0 | 2.9 | 13.8 | 1990 |
| YZP-355L2-8 | 250 | 380 | 475 | 3205 | 745 | 1.5-2.0 | 2.9 | 14.8 | 2100 |
| YZP-400L1-8 | 280 | 380 | 540 | 3594 | 744 | 1.5-2.0 | 3.6 | 22.9 | 2800 |
| YZP-400L2-8 | 315 | 380 | 630 | 4043 | 744 | 1.5-2.0 | 3.6 | 26.8 | 3000 |
| YZP-450L1-8 | 355 | 380 | 650 | 4544 | 746 | 1.5-2.0 | 3.6 | 46.5 | 3400 |
| YZP-450L2-8 | 400 | 380 | 750 | 5120 | 746 | 1.5-2.0 | 3.6 | 54.3 | 3800 |
| YZP-450L3-8 | 450 | 380 | 830 | 5760 | 746 | 1.5-2.0 | 3.6 | 55 | 3700 |
| YZP-315S-10 | 55 | 380 | 124 | 881 | 585 | 1.5-2.0 | 3.3 | 4.79 | 970 |
| YZP-315M1-10 | 75 | 380 | 168 | 1203 | 585 | 1.5-2.0 | 3.2 | 6.37 | 1130 |
| YZP-315M2-10 | 90 | 380 | 198 | 1445 | 585 | 1.5-2.0 | 3.2 | 7.15 | 1210 |
| YZP-315M3-10 | 110 | 380 | 230 | 1769 | 585 | 1.5-2.0 | 3.0 | 7.25 | 1230 |
| YZP-355M1-10 | 132 | 380 | 277 | 2103 | 585 | 1.5-2.0 | 2.7 | 10.9 | 1680 |
| YZP-355M2-10 | 160 | 380 | 333 | 2548 | 585 | 1.5-2.0 | 2.7 | 13.7 | 1730 |
| YZP-355L-10 | 200 | 380 | 418 | 3185 | 585 | 1.5-2.0 | 2.7 | 15.8 | 1990 |
| YZP-400L1-10 | 220 | 380 | 440 | 3537 | 594 | 1.5-2.0 | 3.6 | 22.9 | 2800 |
| YZP-400L2-10 | 250 | 380 | 520 | 4019 | 594 | 1.5-2.0 | 3.6 | 26.8 | 3000 |
| YZP-450L1-10 | 315 | 380 | 650 | 5038 | 597 | 1.5-2.0 | 3.6 | 46.5 | 3400 |
| YZP-450L2-10 | 355 | 380 | 720 | 5678 | 597 | 1.5-2.0 | 3.6 | 54.3 | 3800 |
| YZP-450L3-10 | 400 | 380 | 780 | 6398 | 597 | 1.5-2.0 | 3.6 | 55 | 4000 |
| YZP-500L1-4 | 710 | 660 | 710 | 4544 | 1492 | 1.5-2.0 | 3.6 | 38.8 | 4000 |
| YZP-500L2-4 | 800 | 660 | 800 | 5120 | 1492 | 1.5-2.0 | 3.6 | 46.8 | 4500 |
| YZP-500L3-4 | 900 | 660 | 900 | 5760 | 1492 | 1.5-2.0 | 3.6 | 54.3 | 5000 |
| YZP-500L4-4 | 1000 | 660 | 1000 | 6400 | 1492 | 1.5-2.0 | 3.6 | 54.3 | 5000 |
| YZP-560L1-4 | 1120 | 660 | 1080 | 7159 | 1494 | 1.5-2.0 | 3.6 | 115 | 6800 |
| YZP-560L1-4 | 1250 | 660 | 1200 | 7990 | 1494 | 1.5-2.0 | 3.6 | 115 | 6800 |
| YZP-560L3-4 | 1400 | 660 | 1350 | 8949 | 1494 | 1.5-2.0 | 3.6 | 145.7 | 8000 |
| YZP-560L4-4 | 1600 | 660 | 1550 | 10227 | 1494 | 1.5-2.0 | 3.6 | 145.7 | 8000 |
| YZP-500L1-6 | 560 | 660 | 560 | 5374 | 995 | 1.5-2.0 | 3.6 | 38.8 | 4000 |
| YZP-500L2-6 | 630 | 660 | 630 | 6046 | 995 | 1.5-2.0 | 3.6 | 46.5 | 4500 |
| YZP-500L3-6 | 710 | 660 | 710 | 6814 | 995 | 1.5-2.0 | 3.6 | 54.3 | 5000 |
| YZP-500L4-6 | 800 | 660 | 800 | 7678 | 995 | 1.5-2.0 | 3.6 | 54.3 | 5000 |
| YZP-560L1-6 | 900 | 660 | 900 | 8629 | 996 | 1.5-2.0 | 3.6 | 115 | 6800 |
| YZP-560L2-6 | 1000 | 660 | 1000 | 9588 | 996 | 1.5-2.0 | 3.6 | 115 | 6800 |
| YZP-560L3-6 | 1120 | 660 | 1100 | 10738 | 996 | 1.5-2.0 | 3.6 | 145.7 | 8000 |
| YZP-560L4-6 | 1250 | 660 | 1230 | 11985 | 996 | 1.5-2.0 | 3.6 | 145.7 | 8000 |
| YZP-500L1-8 | 500 | 660 | 530 | 6400 | 746 | 1.5-2.0 | 3.6 | 57.1 | 4000 |
| YZP-500L2-8 | 560 | 660 | 590 | 7168 | 746 | 1.5-2.0 | 3.6 | 68.5 | 4500 |
| YZP-500L3-8 | 630 | 660 | 680 | 8065 | 746 | 1.5-2.0 | 3.6 | 80 | 5000 |
| YZP-500L4-8 | 710 | 660 | 750 | 9089 | 746 | 1.5-2.0 | 3.6 | 80 | 5000 |
| YZP-560L1-8 | 800 | 660 | 860 | 10227 | 747 | 1.5-2.0 | 3.6 | 115 | 6800 |
| YZP-560L2-8 | 900 | 660 | 1000 | 11506 | 747 | 1.5-2.0 | 3.6 | 115 | 6800 |
| YZP-560L3-8 | 1000 | 660 | 1100 | 12784 | 747 | 1.5-2.0 | 3.6 | 145.7 | 8000 |
| YZP-560L4-8 | 1120 | 660 | 1200 | 14318 | 747 | 1.5-2.0 | 3.6 | 145.7 | 8000 |
| YZP-500L1-10 | 450 | 660 | 510 | 7198 | 597 | 1.5-2.0 | 3.6 | 68.5 | 4500 |
| YZP-500L2-10 | 500 | 660 | 580 | 7998 | 597 | 1.5-2.0 | 3.6 | 68.5 | 4500 |
| YZP-500L3-10 | 560 | 660 | 650 | 8958 | 597 | 1.5-2.0 | 3.6 | 80 | 5000 |
| YZP-500L4-10 | 630 | 660 | 710 | 10077 | 597 | 1.5-2.0 | 3.6 | 80 | 5000 |
| YZP-560L1-10 | 710 | 660 | 780 | 11338 | 598 | 1.5-2.0 | 3.6 | 115 | 6800 |
| YZP-560L2-10 | 800 | 660 | 900 | 12775 | 598 | 1.5-2.0 | 3.6 | 115 | 6800 |
| YZP-560L3-10 | 900 | 660 | 1000 | 14372 | 598 | 1.5-2.0 | 3.6 | 145.7 | 8000 |
| YZP-560L4-10 | 1000 | 660 | 1120 | 15969 | 598 | 1.5-2.0 | 3.6 | 145.7 | 8000 |
IMB3 Mounting Size of YZP Series Variable-Frequency Adjustable-Speed Three-phase Induction Motor for Crane and Metallurgical Applications
| Frame | A | A/2 | B | C | CA | D | D1 | E | F | G | H | K | Bolt Diameter | AB | AC | AD | BB | HA | HD | L | LC | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100L | 160 | 80 | 140 | 63 | - | 28 | - | 60 | - | 8 | 24 | 100 | 12 | M10 | 206 | 215 | 135 | 200 | 12 | 250 | 330 | 395 |
| 112M | 190 | 95 | 140 | 70 | 135 | 32 | - | 80 | - | 10 | 27 | 112 | 12 | M10 | 250 | 245 | 160 | 235 | 15 | 330 | 420 | 505 |
| 132M | 216 | 108 | 178 | 89 | 150 | 38 | - | 80 | - | 10 | 33 | 132 | 12 | M10 | 275 | 285 | 160 | 260 | 17 | 360 | 495 | 577 |
| 160M | 254 | 127 | 210 | 108 | 180 | 48 | - | 110 | - | 14 | 42.5 | 160 | 15 | M12 | 320 | 325 | 200 | 290 | 20 | 420 | 610 | 718 |
| 160L | 254 | 127 | 254 | 108 | 180 | 48 | - | 110 | - | 14 | 42.5 | 160 | 15 | M12 | 320 | 325 | 200 | 335 | 20 | 420 | 650 | 762 |
| 180L | 279 | 139.5 | 279 | 121 | 180 | 55 | M36×3 | 110 | 82 | 14 | 19.9 | 180 | 15 | M12 | 360 | 360 | 200 | 380 | 22 | 460 | 685 | 800 |
| 200L | 318 | 159 | 305 | 133 | 210 | 60 | M42×3 | 140 | 105 | 16 | 21.4 | 200 | 19 | M16 | 406 | 405 | 245 | 400 | 25 | 510 | 780 | 928 |
| 225M | 356 | 178 | 311 | 149 | 258 | 65 | M42×3 | 140 | 105 | 16 | 23.9 | 225 | 19 | M16 | 455 | 430 | 245 | 410 | 28 | 545 | 850 | 998 |
| 250M | 406 | 203 | 349 | 168 | 295 | 70 | M48×3 | 140 | 105 | 18 | 25.4 | 250 | 24 | M20 | 515 | 480 | 315 | 510 | 30 | 605 | 935 | 1092 |
| 280S | 457 | 228.5 | 368 | 190 | 295 | 85 | M56×4 | 170 | 130 | 20 | 31.7 | 280 | 24 | M20 | 575 | 535 | 315 | 530 | 32 | 665 | 1000 | 1180 |
| 280M | 457 | 228.5 | 419 | 190 | 295 | 85 | M56×4 | 170 | 130 | 20 | 31.7 | 280 | 24 | M20 | 575 | 535 | 315 | 580 | 32 | 665 | 1060 | 1240 |
| 315S | 508 | 254 | 406 | 216 | 320 | 95 | M64×4 | 170 | 130 | 22 | 35.2 | 315 | 28 | M24 | 640 | 620 | 370 | 580 | 35 | 750 | 1130 | 1310 |
| 315M | 508 | 254 | 457 | 216 | 320 | 95 | M64×4 | 170 | 130 | 22 | 35.2 | 315 | 28 | M24 | 640 | 620 | 370 | 630 | 35 | 750 | 1180 | 1360 |
| 355M | 610 | 305 | 560 | 254 | 365 | 110 | M80×4 | 210 | 165 | 25 | 41.9 | 355 | 28 | M24 | 740 | 710 | 440 | 730 | 38 | 840 | 1390 | 1610 |
| 355L | 610 | 305 | 630 | 254 | 365 | 110 | M80×4 | 210 | 165 | 25 | 41.9 | 355 | 28 | M24 | 740 | 710 | 440 | 800 | 38 | 840 | 1460 | 1680 |
| 400L | 686 | 343 | 710 | 280 | 405 | 130 | M100×4 | 250 | 200 | 28 | 50 | 400 | 35 | M30 | 855 | 800 | 440 | 880 | 45 | 1090 | 1645 | 1890 |
| 425L-4 | 720 | 360 | 900 | 280 | - | 130 | M100×4 | 250 | 200 | 28 | 50 | 425 | - | M28 | - | 840 | - | - | 70 | 1040 | 2050 | - |
| 450 | 750 | 375 | 900 | 315 | - | 130 | - | 250 | - | 32 | 119 | 450 | - | M35 | - | 920 | - | 1020 | - | - | 2000 | - |
| 500 | 850 | 425 | 900 | 315 | - | 140 | - | 250 | - | 36 | 128 | 500 | - | M42 | - | 1000 | - | 1185 | - | - | 2200 | - |
| 560 | 950 | 475 | 1000 | 355 | - | 160 | - | 300 | - | 40 | 147 | 560 | - | M42 | - | 1100 | - | 1300 | - | - | 2500 | - |
IMB5 Mounting Size of YZP Series Variable-Frequency Adjustable-Speed Three-phase Induction Motor for Crane and Metallurgical Applications
| Frame | Flange No. | D | D1 | E | E1 | F | G | M | N | P | R | S | Bolt Diameter | T | n | AD | L | LA | LB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100L | FF215 | 28 | - | 60 | - | 8 | 24 | 215 | 180 | 250 | 0 | 15 | M12 | 4 | 4 | 180 | 370 | 14 | 310 |
| 112M | FF215 | 32 | - | 80 | - | 10 | 27 | 215 | 180 | 250 | 0 | 15 | M12 | 4 | 4 | 220 | 460 | 14 | 380 |
| 132M | FF265 | 38 | - | 80 | - | 10 | 33 | 265 | 230 | 300 | 0 | 15 | M12 | 4 | 4 | 230 | 535 | 14 | 455 |
| 160M | FF300 | 48 | - | 110 | - | 14 | 42.5 | 300 | 250 | 350 | 0 | 19 | M16 | 5 | 4 | 260 | 660 | 18 | 550 |
| 160L | FF300 | 48 | - | 110 | - | 14 | 42.5 | 300 | 250 | 350 | 0 | 19 | M16 | 5 | 4 | 260 | 700 | 18 | 590 |
| 180L | FF300 | 55 | M36×3 | 110 | 82 | 14 | 19.9 | 300 | 250 | 350 | 0 | 19 | M16 | 5 | 4 | 280 | 735 | 18 | 625 |
| 200L | FF400 | 60 | M42×3 | 140 | 105 | 16 | 21.4 | 400 | 350 | 450 | 0 | 19 | M16 | 5 | 8 | 320 | 830 | 20 | 690 |
| 225M | FF400 | 65 | M42×3 | 140 | 105 | 16 | 23.9 | 400 | 350 | 450 | 0 | 19 | M16 | 5 | 8 | 335 | 900 | 20 | 760 |
| 250M | FF500 | 70 | M48×3 | 140 | 105 | 18 | 25.4 | 500 | 450 | 550 | 0 | 19 | M16 | 5 | 8 | 385 | 995 | 22 | 855 |
| 280S | FF500 | 85 | M56×4 | 170 | 130 | 20 | 31.7 | 500 | 450 | 550 | 0 | 19 | M16 | 5 | 8 | 435 | 1060 | 22 | 890 |
| 280M | FF500 | 85 | M56×4 | 170 | 130 | 20 | 31.7 | 500 | 450 | 550 | 0 | 19 | M16 | 5 | 8 | 435 | 1120 | 22 | 950 |
| 315S | FF600 | 95 | M64×4 | 170 | 130 | 22 | 35.2 | 600 | 550 | 660 | 0 | 24 | M20 | 6 | 8 | 520 | 1190 | 25 | 1020 |
| 315M | FF600 | 95 | M64×4 | 170 | 130 | 22 | 35.2 | 600 | 550 | 660 | 0 | 24 | M20 | 6 | 8 | 520 | 1240 | 25 | 1070 |
Types of Mounting and Cooling of YZP Series Variable-Frequency Adjustable-Speed Three-phase Induction Motor for Crane and Metallurgical Applications
| Frame Size | Mounting Code | Cooling Method |
|---|---|---|
| IM1001 | 112～315 | 112-132 IC411 160-315 IC416(Axial Fan） |
| IM1003 | 180～315 | 112-132 IC411 160-315 IC416(Axial Fan） |
| IM3001 | 112～280 | 112-132 IC411 160-280 IC416(Axial Fan） |
| IM3003 | 180～280 | 112-132 IC411 160-280 IC416(Axial Fan） |
| IM3011 | 112～315 | 112-132 IC411 160-315 IC416(Axial Fan） |
| IM3013 | 180～315 | 112-132 IC411 160-315 IC416(Axial Fan） |

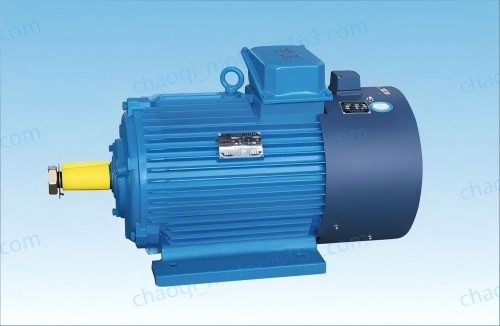

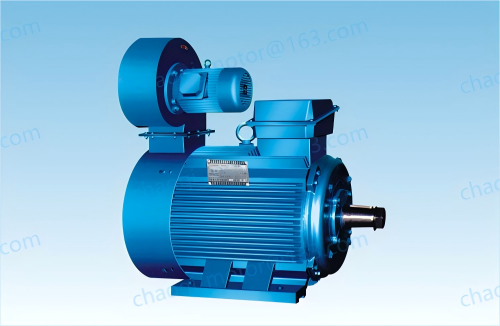

Types of Mounting and Cooling of YZP Series Variable-Frequency Adjustable-Speed Three-phase Induction Motor for Crane and Metallurgical Applications
| Frame Size | Mounting Code | Cooling Method |
|---|---|---|
| IM1001 | 112～315 | 112-132 IC411 160-315 IC416(Axial Fan） |
| IM1003 | 180～315 | 112-132 IC411 160-315 IC416(Axial Fan） |
| IM3001 | 112～280 | 112-132 IC411 160-280 IC416(Axial Fan） |
| IM3003 | 180～280 | 112-132 IC411 160-280 IC416(Axial Fan） |
| IM3011 | 112～315 | 112-132 IC411 160-315 IC416(Axial Fan） |
| IM3013 | 180～315 | 112-132 IC411 160-315 IC416(Axial Fan） |
