YG Series Three-Phase Induction Motor for Roller Table Applications
  1. YG Series Three-Phase Induction Motor for Roller Table Applications

YG Series Three-Phase Induction Motor for Roller Table Applications

Send Inquiry Live chat
  • Product Detail
Spefication of YG Series Three-Phase Induction Motor for Roller Table Applications

S5 40% Duty Specification of YGa Series Three-Phase Induction Motor for Roller Table Applications

Model Stall Torque
N.m 		Stall Current
A 		Power
KW 		Dynamic Constant
FC=15%
kg.m2/h 		Dynamic Constant
FC=25%
kg.m2/h 		Dynamic Constant
FC=40%
kg.m2/h 		Dynamic Constant
FC=60%
kg.m2/h 		Moment of inertia
kg·m² 		Weight
kgs
YGa-112L1-4 22 13 1.2 94 92 90 86 0.0112 57
YGa-112L2-4 36 19 1.8 140 135 130 125 0.0166 66
YGa-112L1-6 22 8.5 0.8 215 210 205 200 0.0112 57
YGa-112L2-6 34 12 1.2 290 285 280 270 0.0166 66
YGa-112L1-8 17 5.6 0.45 350 345 335 320 0.0112 57
YGa-112L2-8 28 9 0.75 495 485 470 450 0.0166 66
YGa-112L1-10 16 4.5 0.32 520 510 490 465 0.0112 57
YGa-112L2-10 25 7.5 0.5 700 685 660 625 0.0166 66
YGa-112L1-12 22 5.3 0.3 1060 1030 990 930 0.0166 66
YGa-132M1-6 50 18 1.7 315 310 300 290 0.0251 90
YGa-132M2-6 71 24 2.4 390 380 375 360 0.0333 98
YGa-132M1-8 42 12 1.1 530 520 510 480 0.0251 90
YGa-132M2-8 60 17 1.6 670 655 640 605 0.0333 98
YGa-132M1-10 38 9 0.75 790 770 740 700 0.0251 90
YGa-132M2-10 56 13 1.1 990 970 930 880 0.0333 98
YGa-132M1-12 36 8 0.56 1130 1090 1050 990 0.0251 90
YGa-132M2-12 53 11 0.85 1400 1360 1300 1220 0.0333 98
YGa-160S1-8 80 22 2.2 810 790 770 730 0.0646 131
YGa-160S2-8 110 30 3 1010 990 950 910 0.0841 142
YGa-160L1-8 150 40 4 1230 1200 1160 1110 0.114 172
YGa-160L2-8 210 56 5.3 1470 1430 1380 1310 0.139 190
YGa-160S1-10 80 18 1.6 1220 1190 1150 1090 0.0646 131
YGa-160S2-10 110 24 2.2 1470 1440 1380 1300 0.0814 142
YGa-160L1-10 150 32 3 1880 1830 1760 1670 0.114 172
YGa-160L2-10 200 40 3.8 2260 2200 2120 2000 0.139 190
YGa-160S1-12 75 15 1.2 1670 1620 1550 1440 0.0646 131
YGa-160S2-12 105 20 1.6 2060 2000 1910 1780 0.0814 142
YGa-160L1-12 140 26 2.2 2590 2510 2400 2230 0.114 172
YGa-160L2-12 190 34 3 3120 3020 2880 2680 0.1396 190
YGa-160S1-16 50 9.5 0.48 2770 2660 2500 2290 0.0646 131
YGa-160S2-16 75 13 0.75 3390 3250 3050 2770 0.0814 142
YGa-160L1-16 105 18 1.1 4340 4160 3990 3540 0.114 172
YGa-160L2-16 140 24 1.6 5170 4950 4640 4180 0.139 190
YGa-180L1-8 280 67 6.7 1640 1600 1540 1460 0.237 229
YGa-180L1-10 250 48 4.8 2500 2440 2350 2220 0.237 229
YGa-180L2-10 320 60 6 2880 2810 2690 2530 0.294 252
YGa-180L1-12 250 42 4 3600 3500 3340 3130 0.237 229
YGa-180L2-12 320 53 5 4180 4050 3860 3610 0.294 252
YGa-180L1-16 190 30 2.2 5850 5610 5270 4800 0.237 229
YGa-180L2-16 250 38 3 6950 6670 6260 5710 0.294 252
YGa-200L1-10 400 75 7.5 3260 3180 3050 2880 0.529 302
YGa-200L2-10 500 95 9.5 3790 3690 3530 3320 0.631 337
YGa-200L1-12 400 63 6.3 4650 4500 4290 4010 0.509 302
YGa-200L2-12 500 80 8 5470 5300 5040 4700 0.631 337
YGa-200L1-16 320 50 4 7890 7580 7100 6490 0.509 302
YGa-200L2-16 420 63 5.3 9100 8710 8100 7370 0.631 337
YGa-200L1-20 250 36 2 11210 10630 9750 8590 0.509 302
YGa-200L2-20 340 48 2.8 12980 12250 11150 9690 0.631 337
YGa-225M1-10 630 125 12 3870 3740 3550 3280 0.91 410
YGa-225M2-10 800 150 15 4440 4290 4050 3740 1.11 445
YGa-225M1-12 630 100 10 5550 5350 5050 4650 0.91 410
YGa-225M2-12 800 130 12 6330 6080 5710 5220 1.11 445
YGa-225M1-16 530 80 6.7 9380 8950 8310 7460 0.91 410
YGa-225M2-16 670 100 8.5 10770 10250 9460 8400 1.11 445
YGa-225M1-20 450 63 3.6 13830 12990 11760 10050 0.91 410
YGa-225M2-20 560 80 4.5 15750 14760 13300 11280 1.11 445
Spefication of YGb Series Three-Phase Induction Motor for Roller Table Applications

S1 Duty Specification of YGb Series Three-Phase Induction Motor for Roller Table Applications

Model Rated Power
kW 		Rated Current
A 		Rated Speed
r/min 		Stall Torque
N.m 		Stall Current
A 		Moment of inertia
kg·m² 		Weight
kgs
YGb-112L1-4 1.2 2.8 1410 20 18 0.0112 57
YGb-112L2-4 1.8 4 1410 32 26 0.0166 66
YGb-112L1-6 0.85 2.2 930 20 12 0.0112 57
YGb-112L2-6 1.25 3 930 28 17 0.0166 66
YGb-112L1-8 0.5 1.7 690 15 7 0.0112 57
YGb-112L2-8 0.85 2.6 690 25 12 0.0166 66
YGb-112L1-10 0.36 1.7 550 13 6 0.0112 57
YGb-112L2-10 0.53 2.4 550 20 9 0.0166 66
YGb-112L1-12 0.3 1.6 455 12 4.5 0.0112 57
YGb-112L2-12 0.45 2.2 455 18 6.7 0.0166 66
YGb-132M1-6 1.8 4 935 42 25 0.0251 90
YGb-132M2-6 2.4 5.3 935 60 32 0.0333 98
YGb-132M1-8 1.25 3.4 695 36 16 0.0251 90
YGb-132M2-8 1.8 4.5 695 50 22 0.0333 98
YGb-132M1-10 0.85 3 550 30 12 0.0251 90
YGb-132M2-10 1.25 4 550 45 16 0.0333 98
YGb-132M1-12 0.63 2.8 455 26 9.5 0.0251 90
YGb-132M2-12 0.95 3.8 455 38 14 0.0333 98
YGb-132M1-16 0.36 2.6 320 20 6.7 0.0251 90
YGb-132M2-16 0.5 3.5 320 30 9.5 0.0333 98
YGb-160S1-8 2.5 6 695 71 30 0.0646 131
YGb-160S2-8 3.4 8 695 100 42 0.0814 142
YGb-160L1-8 4.5 10.5 695 140 56 0.114 172
YGb-160L2-8 5.6 14 695 190 75 0.139 190
YGb-160S1-10 1.8 5.6 550 63 25 0.0646 131
YGb-160S2-10 2.4 7.1 550 90 32 0.0814 142
YGb-160L1-10 3.2 9 550 120 42 0.114 172
YGb-160L2-10 4.2 12 550 160 53 0.139 190
YGb-160S1-12 1.3 5 455 56 20 0.0646 131
YGb-160S2-12 1.8 6.7 455 80 26 0.0814 142
YGb-160L1-12 2.6 9 455 110 36 0.114 172
YGb-160L2-12 3.4 12 455 150 48 0.139 190
YGb-160S1-16 0.71 4.5 330 42 12 0.0646 131
YGb-160S2-16 1 6 330 60 17 0.0814 142
YGb-160L1-16 1.5 8.5 330 80 24 0.114 172
YGb-160L2-16 2 11 330 110 30 0.139 190
YGb-180L1-8 6.7 16 695 240 95 0.237 229
YGb-180L2-8 8 20 695 300 110 0.294 252
YGb-180L2-10 5.6 17 555 250 85 0.294 252
YGb-180L1-12 4.2 14 460 200 60 0.237 229
YGb-180L2-12 5 17 460 260 75 0.294 252
YGb-180L1-16 2.5 12.5 340 150 40 0.237 229
YGb-180L2-16 3 17 340 190 50 0.294 252
YGb-180L2-20 1.4 16 275 130 35 0.294 252
YGb-200L1-10 7.1 19 555 320 105 0.509 302
YGb-200L2-10 9 24 555 400 130 0.631 337
YGb-200L1-12 6.3 20 460 320 90 0.509 302
YGb-200L2-12 8 24 460 400 115 0.631 337
YGb-200L1-16 4.2 20 340 250 63 0.509 302
YGb-200L2-16 5.3 24 340 340 80 0.631 337
YGb-200L1-20 2.2 18 275 180 45 0.509 302
YGb-200L2-20 3.2 24 275 250 60 0.631 337
YGb-225M1-10 11 30 560 500 170 0.91 410
YGb-225M2-10 14 37 560 630 210 1.11 445
YGb-225M2-12 11 36 460 630 165 1.11 445
YGb-225M1-16 6.7 30 340 450 100 0.91 410
YGb-225M2-16 8.5 40 340 600 125 1.11 445
YGb-225M1-20 4 30 275 340 80 0.91 410
YGb-225M2-20 4.8 38 275 450 100 1.11 445
B3 Mounting of YG Series Three-Phase Induction Motor for Roller Table Applications

B3 Mounting of YG Series Three-Phase Induction Motor for Roller Table Applications

Frame A B C D E F G GD H K AB AE AD HD L
YG-112L 190 159 70 32 80 10 27 8 112 12 235 240 205 235 445
YG-132M 216 178 89 38 80 10 33 8 132 12 265 265 220 270 500
YG-160S 254 178 108 48 110 14 42.5 9 160 15 315 315 245 320 565
YG-160L 254 254 108 48 110 14 42.5 9 160 15 315 315 245 320 685
YG-180L 279 279 121 55 110 16 49 10 180 15 360 365 290 365 730
YG-200I 318 305 133 65 140 18 58 11 200 19 415 420 320 415 780
YG-225M 356 311 149 75 140 20 67.5 12 225 19 465 470 345 465 840
B5 Mounting of YG Series Three-Phase Induction Motor for Roller Table Applications

B5 Mounting of YG Series Three-Phase Induction Motor for Roller Table Applications

Frame D E F G GD M N P R S T AE AD HF L
YG-112L 32 80 10 27 8 215 180 250 0 15 4 240 205 235 445
YG-132M 38 80 10 33 8 265 230 300 0 15 4 265 220 280 500
YG-160S 48 110 14 42.5 9 300 250 350 0 19 5 315 245 335 565
YG-160L 48 110 14 42.5 9 300 250 350 0 19 5 315 245 335 685
YG-180L 55 110 16 49 10 300 250 350 0 19 5 365 290 360 730
YG-200L 65 140 18 58 11 400 350 450 0 19 5 420 320 455 780
YG-225M 75 140 20 67.5 12 400 350 450 0 19 5 470 345 460 840
B5 Mounting of YG Series Three-Phase Induction Motor for Roller Table Applications

B35 Mounting of YG Series Three-Phase Induction Motor for Roller Table Applications

Frame A B C D E F G GD H K M N P R S T AB AE AD HD L
YG-112L 190 159 70 32 80 10 27 8 112 12 215 180 250 0 15 4 235 240 205 240 445
YG-132M 216 178 80 38 80 10 33 8 132 12 265 230 300 0 15 4 265 265 220 285 500
YG-160S 254 178 108 48 110 14 42.5 9 160 15 300 250 350 0 19 5 315 315 245 340 565
YG-160L 254 254 108 48 110 14 42.5 9 160 15 300 250 350 0 19 5 315 315 245 340 685
YG-180L 279 279 121 55 110 16 49 10 180 15 300 250 350 0 19 5 360 365 290 365 730
YG-200L 318 305 133 65 140 18 58 11 200 19 400 350 450 0 19 5 415 420 320 430 780
YG-225M 356 311 149 75 140 20 67.5 12 225 19 400 350 450 0 19 5 465 470 345 465 840
Tags:

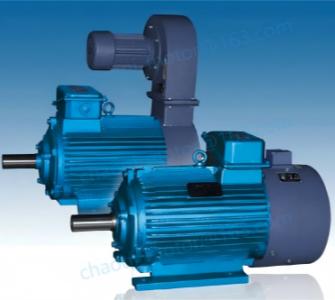

PREVIOUS：YZPE Series Electromagnetic Braking Variable-Frequency Adjustable-Speed Three-phase Induction Motor for Crane and Metallurgical Applications
